Application:
-
Used in coal, ore, port, metallurgical, power and chemical industries, suitable for long distance and heavy load transportation of materials.
-
Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.
-
Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.

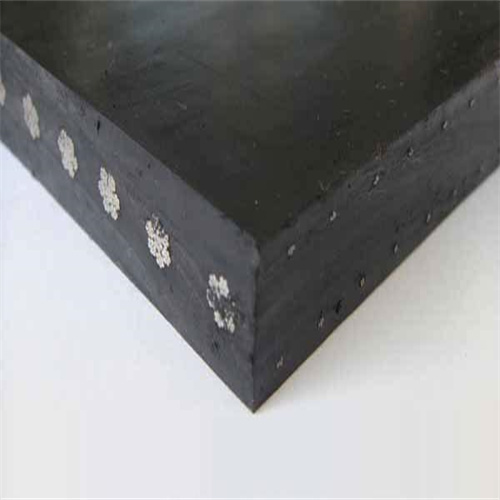

Steel cord structure:
|
K6X7+IWS
|
K6X19+IWS
|
K6X19W+IWS
|
|
|
|

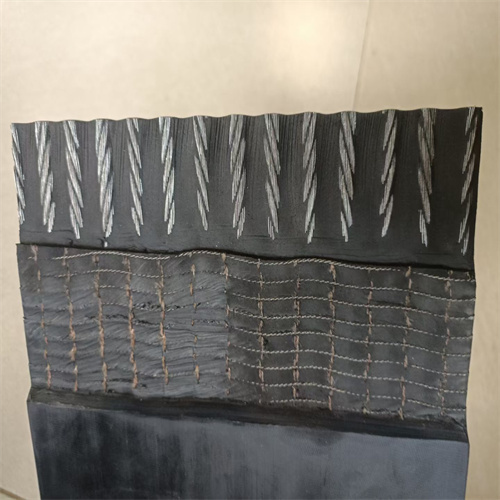

Belt Structures:
Referenced Belt Specifications
Click here to download the Referenced Belt Specifications (PDF, 131KB, updated)
ST Belt Splice
Splice dimensions as per DIN 22131
|
|
ST1000
|
ST1250
|
ST1600
|
ST2000
|
ST2500
|
|
Minimum step length (mm)
|
300
|
350
|
450
|
400
|
500
|
|
Splice length (mm)
|
600
|
650
|
750
|
1150
|
1350
|
|
|
ST3150
|
ST3500
|
ST4000
|
ST4500
|
ST5000
|
|
Minimum step length (mm)
|
650
|
650
|
750
|
800
|
900
|
|
Splice length (mm)
|
1650
|
2350
|
2650
|
2800
|
4050
|
Splice Configurations
One-step splice (up to ST 2000)
Two-step splice (ST2500 to ST3150)
Three-step splice (ST3500 to ST4500)
Four-step splice (ST5000 to ST7500)
|
