Construction:

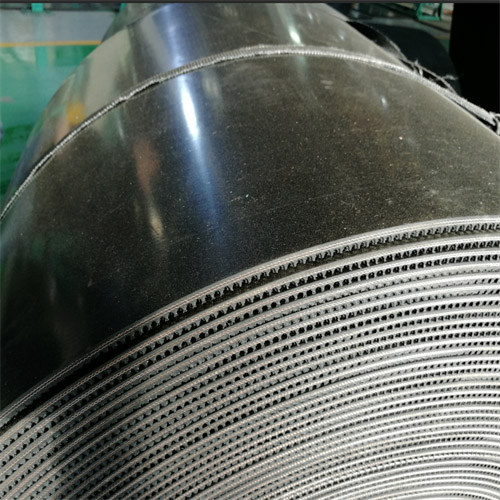

2 or 3 ply construction with cut edges and carcass of EP fabric.

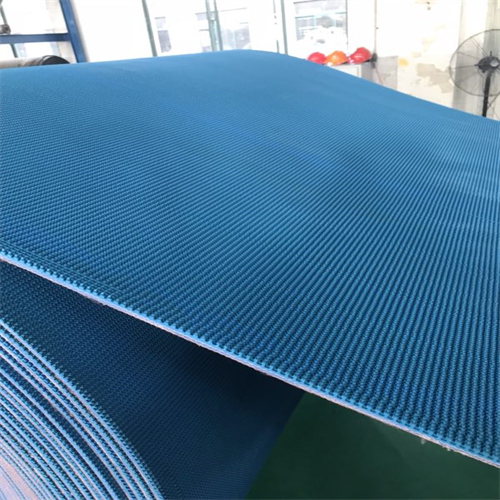

The surface texture resists the tendency for the material to roll back down the conveyor.
Features:
- The top cover is made of wear-resistant rubber with a non-slip surface. It has cushioning effect, mollifies and absorbs vibrations and impacts given on transported materials and simultaneously prevents slippings.
- Available with bottom cover or bare back for slider bed applications.
- Although it depends on the transported materials, transportation at inclination angles 25 ~ 30 is feasible.
Application:
Rough top conveyor belt is used for transporting light weight goods, such as sacks, boxes and parcels, on inclined surface at angles of maximal 35 degree.
Specification:
| Edge | No. of ply | Top cover | Bottom cover |
| C/E | 2 | 1/8" (3.2 mm) | 1/16" (1.6 mm) |
| C/E | 2 | 1/8" (3.2 mm) | Bare back |
| C/E | 3 | 1/8" (3.2 mm) | 1/16" (1.6 mm) |
| C/E | 3 | 1/8" (3.2 mm) | Bare back |
